TALK ABOUT A GOOD FIT

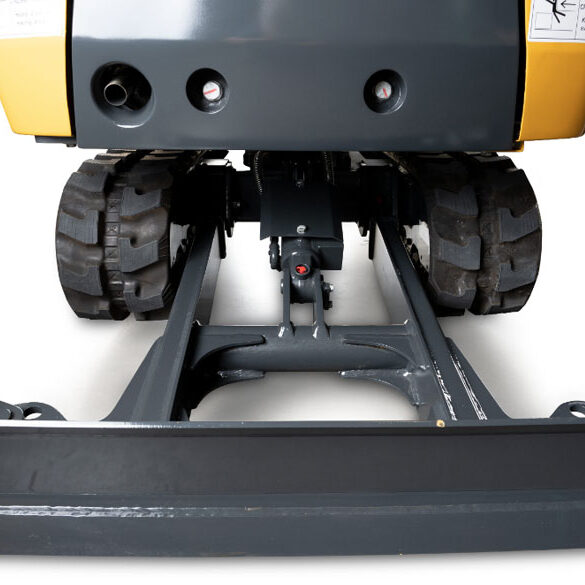

The 9018F’s compact stature, combined with a retractable undercarriage, allows operators to easily pass through narrow entryways. 51-inch outside-tread-to-outside tread measurement retracts to just 39 inches when needed and then expands back out for balance and stabilization during operation.
A MINI THAT’S LOADED
WITH IMPROVEMENTS
Engine:
Yanmar 3TNV80F
Net Power:
17.1 hp (12.6 kW)
Operating Weight:
4,189 – 3,969 lb (1,900 – 1,800 kg)
Bucket Capacity:
0.o6 yd3 (0.045 m3)
Maximum Digging Depth:
8 ft 0 in (2,430 mm)
Power Without Waste
The new 9018F Excavator is powered by the latest fuel efficient Yanmar 3TNV80F engine, it has a net power rating of 13.4 kW (18 hp) and fully complies with Tier IV Final emission standards without compromising on power or performance. The refined combustion process assures precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of application and increased fuel economy.
Ultimate Comfort
The new 9018F Excavator provides an operator platform geared to get more work done with creature comforts that make those 12 hour days a breeze. Ergonomic controls and excellent all-around visibility, the platform enables full control of the operator station.
Ease of Use

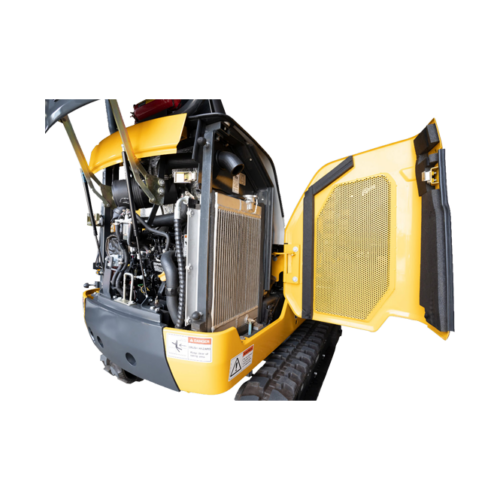

When it’s time to perform the standard daily maintenance checks, the new 9018F Excavator makes access to critical areas easy on the operator.
Short Tailswing
The 9018F’s design is built for operating in those hard to maneuver locales like congested roadways, near commercial buildings and residences and anywhere obstacles can impede work.
