A MULTIFUNCTION TOOL CARRIER

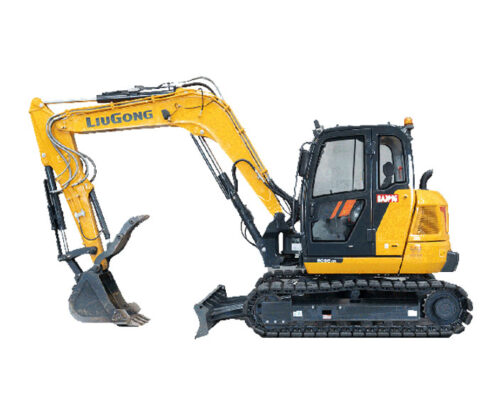

The 909ECR is a versatile machine packed with features. It’s flexible and versatile, making you even more productive.
ADVANCED HYDRAULICS,
MAJOR R&D
Engine:
Yanmar 4TNV98C
Net Power:
59 hp (44 kW)
Operating Weight:
19,180lb (8,700 kg)
Bucket Capacity:
0.37 yd3 (0.28 m3)
Maximum Digging Depth:
14 ft 11 in (4,540 mm)
Powerful Performance
The secret to the 909ECR’s proven and reliable power is the Tier 4 Final Yanmar 4TNV98C engine, with an advanced hydraulics system perfectly matched to it. This load sensing, flow sharing capability means greater precision and control. And what more could an operator ask for than that?
Operator Friendly

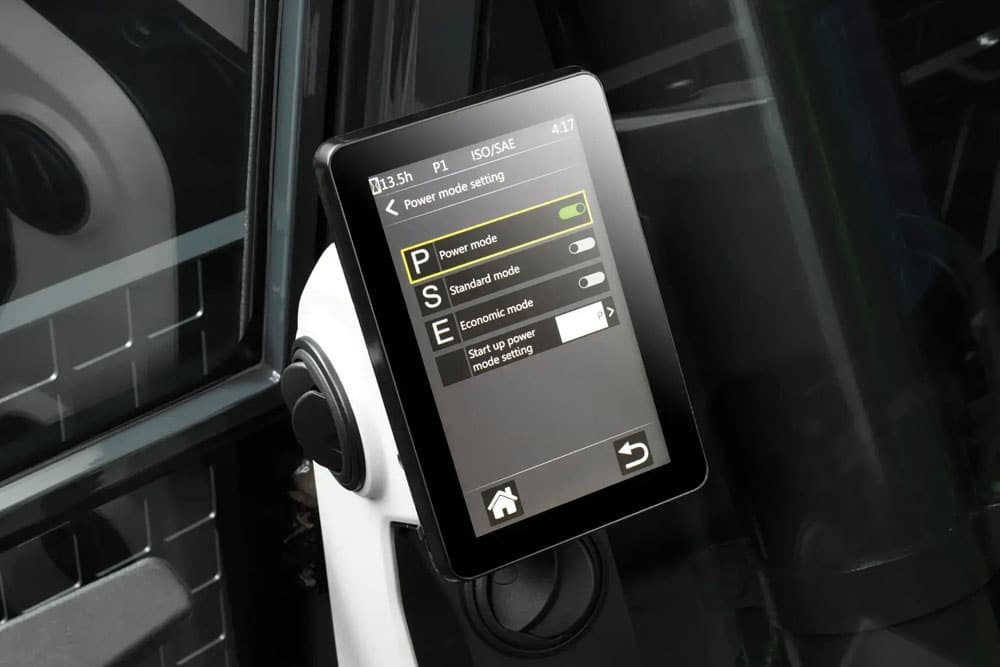

Exceptional comfort comes standard with the new 909ECR. ROPS certified pressurized climate-controlled cab with high-visibility displays, ergonomically designed controls, low-effort joysticks, and air suspension seat. One sliding window, a large removable bottom windshield, and a foldable top windshield offer the operator exceptional flexibility to configure the cab to meet their needs.
Optimized Hydraulics

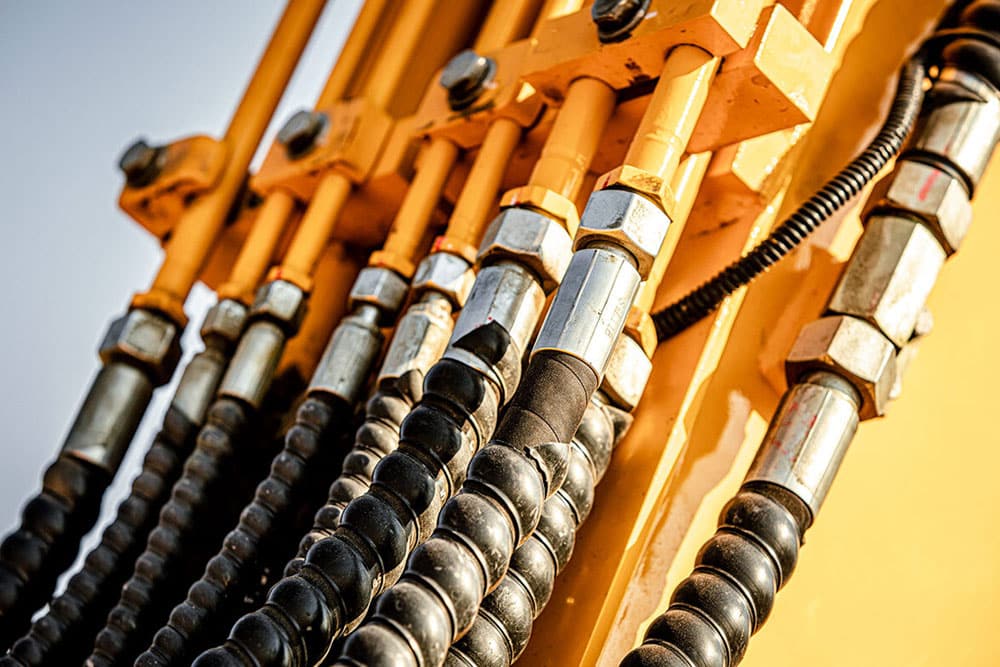

The dual auxiliary controls feature high flow and low flow two-way proportional control are adjustable at the monitor. The improved design has a dedicated case drain line from the arm’s end to the hydraulic tank. Choose multiple attachments for increased productivity.
Multipurpose Tool Carrier

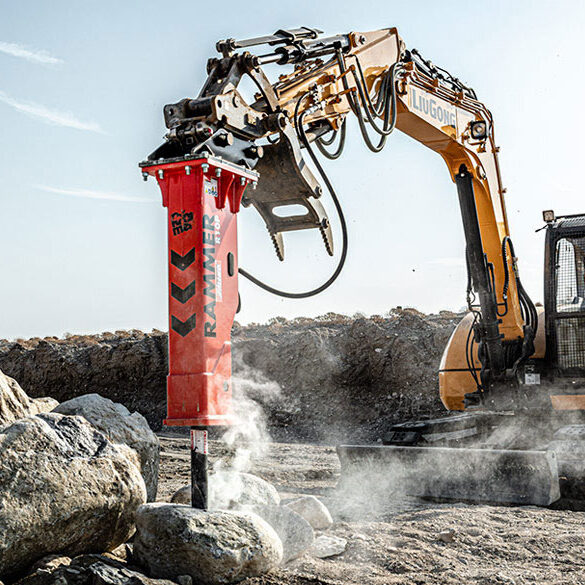

Switching attachments and work tools like multiple buckets, hydraulic breakers, rock wheels, and shears can be fast, safe, and easy with our optional quick coupler or optional power latch tilt coupler.
