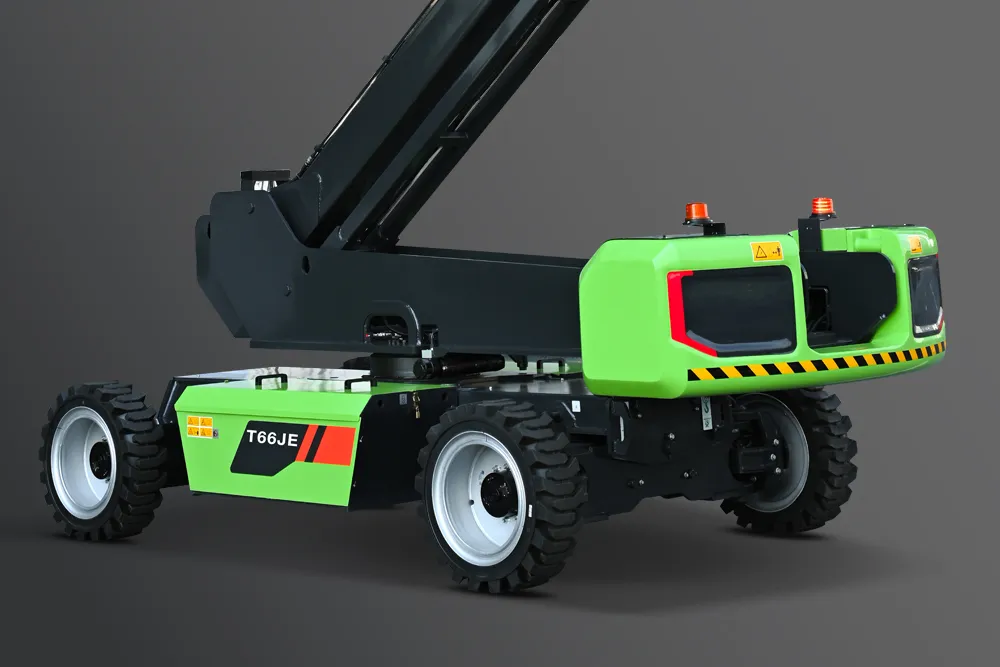

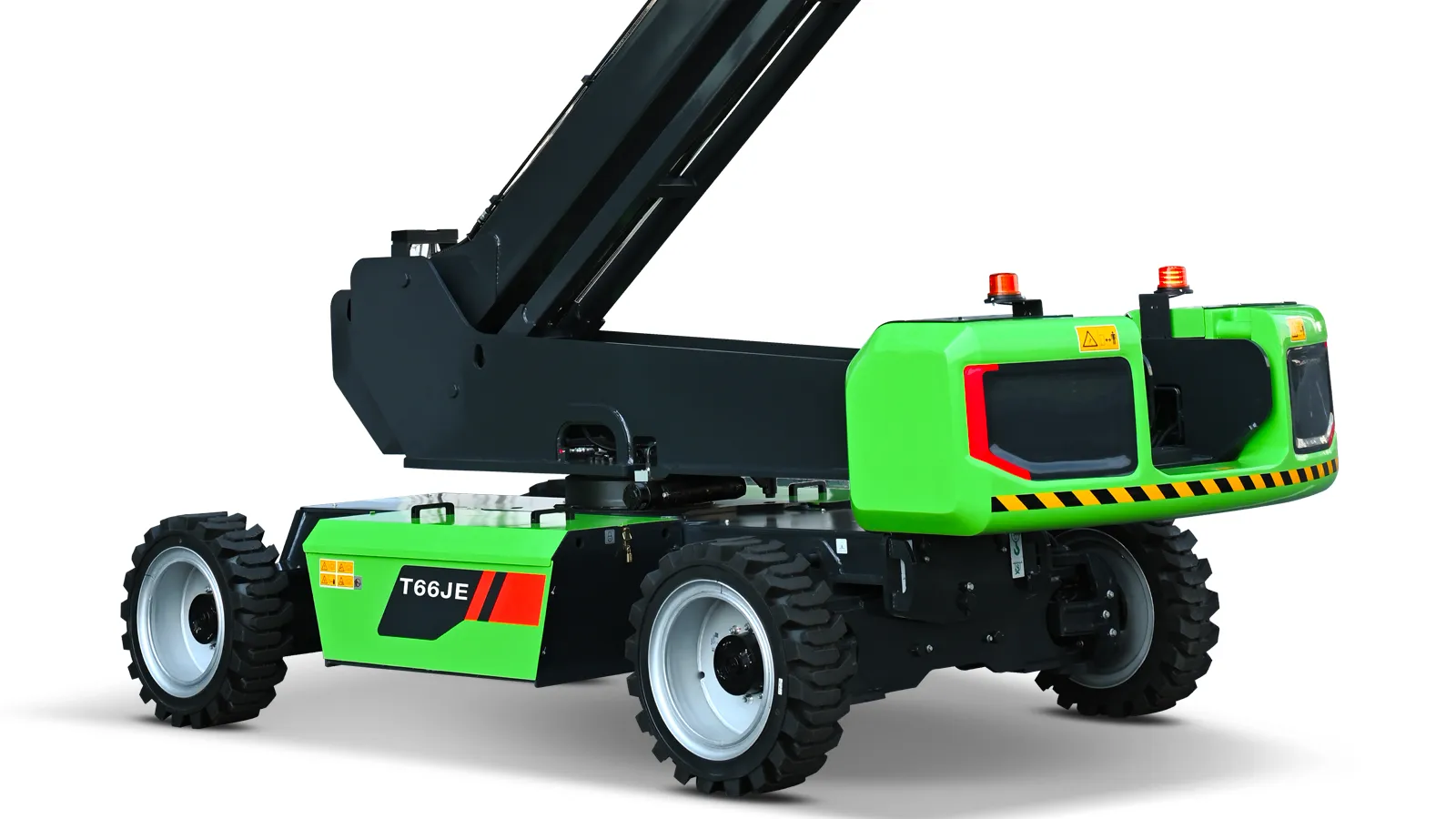

21 Meters / 70 ft Class Performance Without Diesel
This is where electric stops being an alternative and becomes an upgrade. With a massive 21.5 m (70’6″) working height and 14 m (45’11”) operating amplitude, the T66JE delivers true high reach performance typically dominated by diesel machines. A 13.4 m (43’11”) horizontal reach lets you extend out over obstacles, structures, and equipment without constant repositioning. The result is that you can take on high reach jobs with electric efficiency, not diesel limitations.
WORKING HEIGHT MAX.
21.5 M (70’6″)
PLATFORM HEIGHT MAX.
19.5 M (63’11”)
OPERATING AMPLITUDE MAX.
14 M (45’11”)
BATTERY
48 V / 480 Ah (23.04 kWh)
OVERALL LIFT CAPACITY MAX.
320 KG (705 LB)
Full Capacity at Full Height

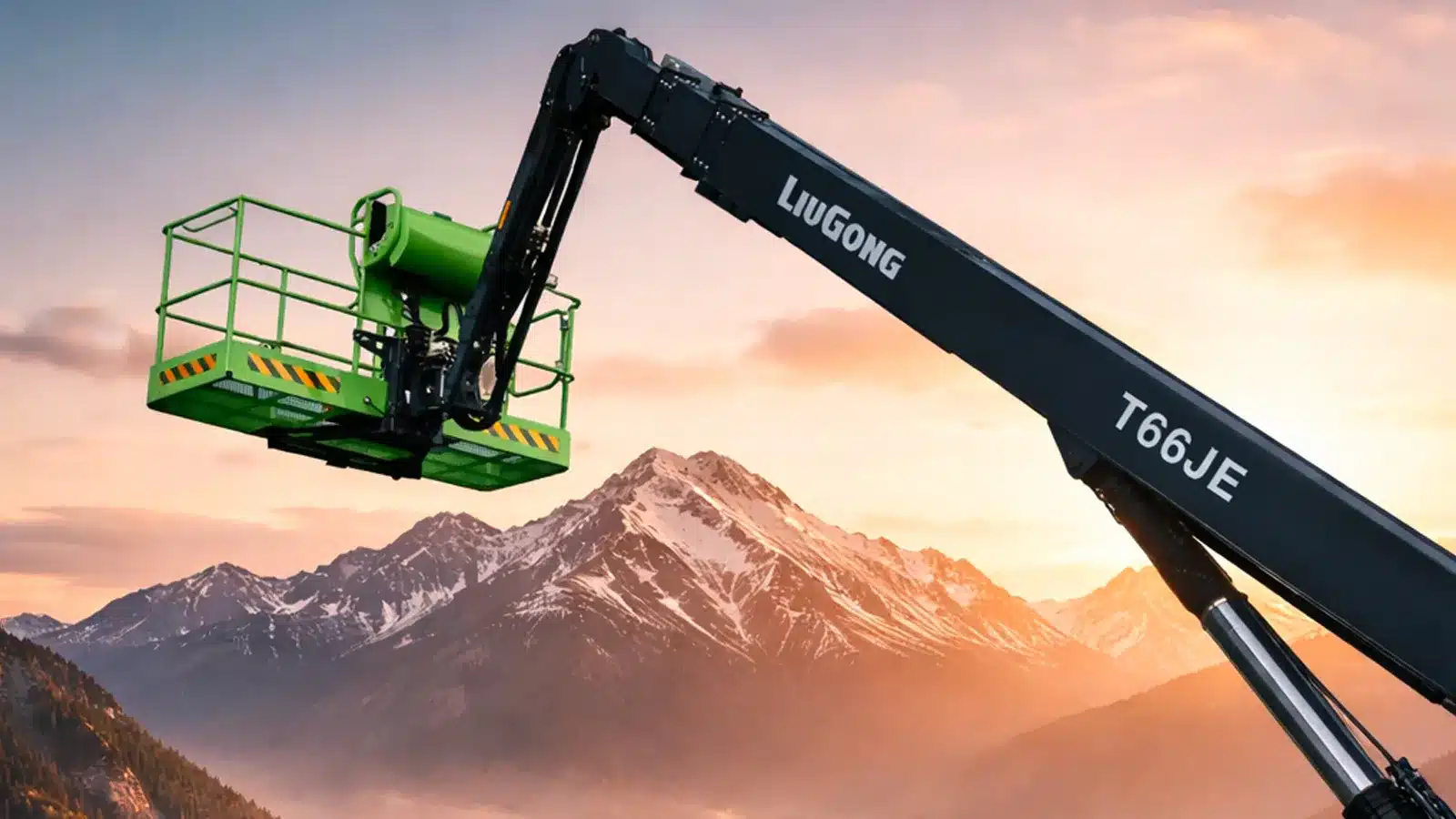

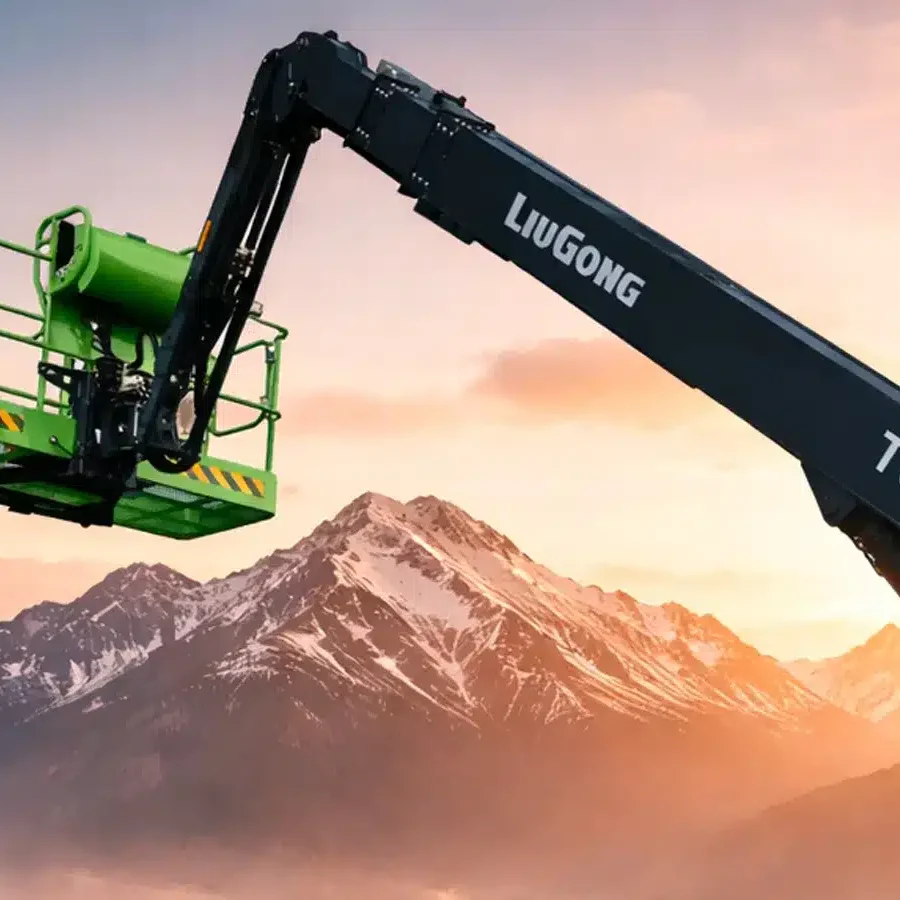

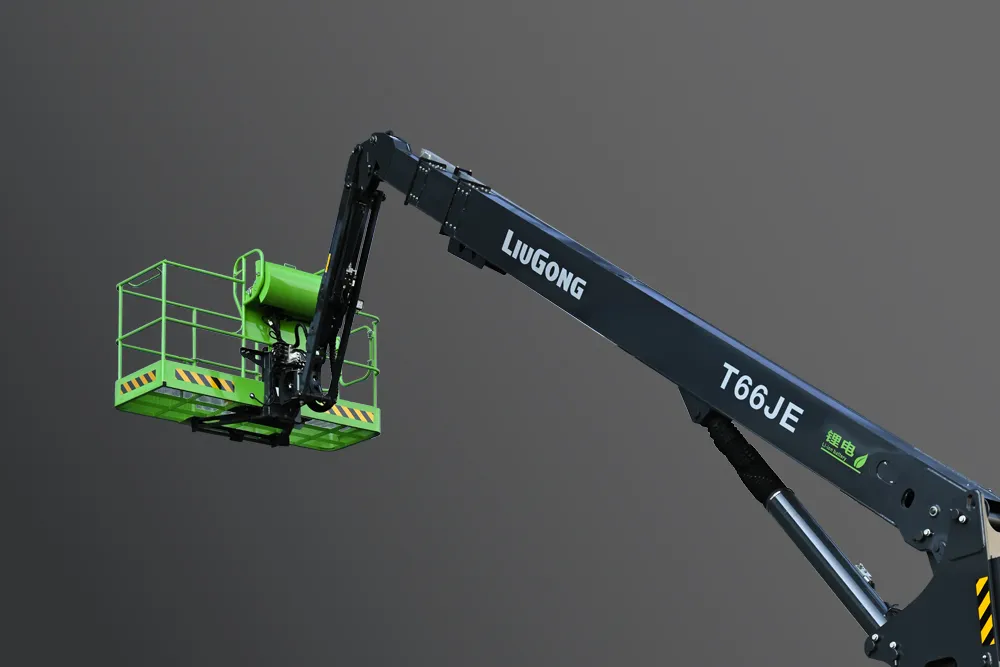

Getting high is only half the job. The T66JE lets you work when you get there. With a 320 kg (705 lbs.) platform capacity, it supports two operators plus tools and materials with no tradeoffs at height. The platform rotates 90 degrees for precise positioning, while the articulating jib moves from 65 degrees down to 70 degrees up to reach those hard-to-get angles. Continuous 360-degree turntable rotation gives you full access without ever repositioning the machine. The result is less repositioning, more working time, and faster job completion.
Built for Rough Terrain and Ready for Tight Access
High reach machines usually mean limited access. Not here. With 4WD drive, 45% gradeability, and advanced traction control, the T66JE moves confidently across mud, gravel, slopes, and uneven ground. At the same time, a 2.29 m (7’6″) transport width and compact tail swing allow operation in tighter commercial and industrial spaces than typical machines in this class. The result is one machine for demanding outdoor terrain and constrained job sites.
All Day Electric Power. Intelligent Efficiency.
Power isn’t the issue. Wasted energy is. The T66JE eliminates both. The 48V 480Ah battery (23.04 kWh) delivers extended runtime, backed by a high output 48V 60A charger for faster turnaround between shifts. The AC drive system provides strong, maintenance friendly performance, while load sensitive hydraulics deliver precise, efficient power delivery exactly when you need it. Composite action controls allow multiple movements at once, saving time on every cycle. The result is longer runtime, faster operation, and less wasted energy.
Smooth, Stable Operation at Extreme Height
At 70 feet, control is everything. The T66JE features an optimized boom structure that reduces weight while increasing stability, with automatic deceleration at limits providing smooth, controlled motion and minimal platform sway for confident operation at full extension. Beyond stability, this machine is designed for the environment where work happens. IP65 rated components provide complete dust tight protection and resistance to rain, snow, and job site washdowns. Dual channel safety sensors deliver reliable operation, while an electric emergency power system provides backup security when you need it most. A tilt sensor system (5° / 5°) gives real time safety awareness on uneven ground. The result is better control, less fatigue, reliable performance in harsh conditions, and confidence at height.
Lower Costs. Higher Return.
Electric isn’t just cleaner. It’s smarter financially. The T66JE delivers no fuel costs, fewer moving parts than diesel, reduced maintenance and service intervals, and quiet operation that expands your jobsite access. The result is lower total cost of ownership and higher ROI over the life of the machine. If your work demands serious height, long reach, and all-day performance, the T66JE delivers it without diesel tradeoffs. One machine. Extreme capability. Zero emissions.
