Go Higher Without Going Wider

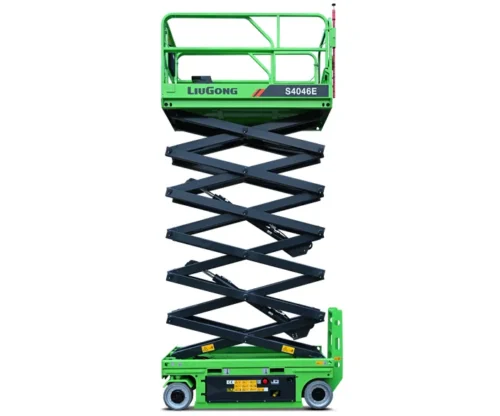

Need more reach but still must fit through the door? That’s exactly what the S4046E is built for. With a 14 m (45’11”) working height and the same narrow 1.19 m (3’10”) width as smaller units, it gives you access to higher ceilings, atriums, and multi-level interiors without sacrificing maneuverability. A spacious 2.28 m (7’6″) platform plus 0.9 m (2’11”) extension deck means more room to work and less repositioning. The result is more height, same access, and greater productivity.

Built to Keep Work Moving
Every delay costs you, and this machine is built to eliminate them. The S4046E reaches full height in 59 seconds and lowers in 46 seconds, delivering consistent, predictable cycles. Proportional controls ensure smooth, precise operation, whether you’re inches from a ceiling grid or fully elevated. With 25% gradeability and a 2.5 km/h (1.55 mph) drive speed, it moves confidently across ramps, loading docks, and uneven transitions. 320 kg (705 lbs.) capacity handles two operators plus tools and materials with ease. The result is less repositioning, faster cycles, and more output per shift.

Higher Reach. Lower Operating Costs.
More height shouldn’t mean more maintenance, and here it doesn’t. The S4046E features maintenance free AC motors with fewer service intervals, backed by a 24V 225Ah battery (5.4 kWh) for reliable, efficient power. Non marking solid tires eliminate flats and floor damage, while the 3,040 kg (6,702 lb) weight makes it easy to transport for its class. A simplified electric drive system reduces wear parts and downtime, keeping your machine working and not waiting. The result is lower cost of ownership, higher uptime, and stronger ROI.

Confidence at Full Height
At 14 meters, stability and control aren’t optional. The S4046E includes a tilt sensor (1.5° / 3°) for safer operation on uneven ground, an automatic pothole protection system for added stability, and controlled drive speed at height for precise positioning. Operators stay in control and managers stay confident. The result is safer crews, fewer risks, and reliable performance at height.
